How to Choose a Reliable Cast Iron Foundry

2026 Ultimate Guide – 5 Core Criteria + Supplier Evaluation Form

Introduction

In the field of industrial manufacturing, the quality of cast iron parts directly determines the stability and service life of equipment. Choosing a reliable foundry is the first and most critical line of defense to ensure casting quality.

Many purchasers have encountered avoidable problems due to selecting the wrong foundry, such as:

• Delivery delays – disrupting production schedules and increasing inventory costs
• Casting defects – leading to rework or scrap and wasting resources
• No after-sales guarantee – adding extra costs and risks
• Unstable quality – affecting the quality of final products

5 Core Criteria for Choosing a Reliable Cast Iron Foundry

Criterion 1: Prioritize Full-Process Comprehensive Quality Inspection Capability

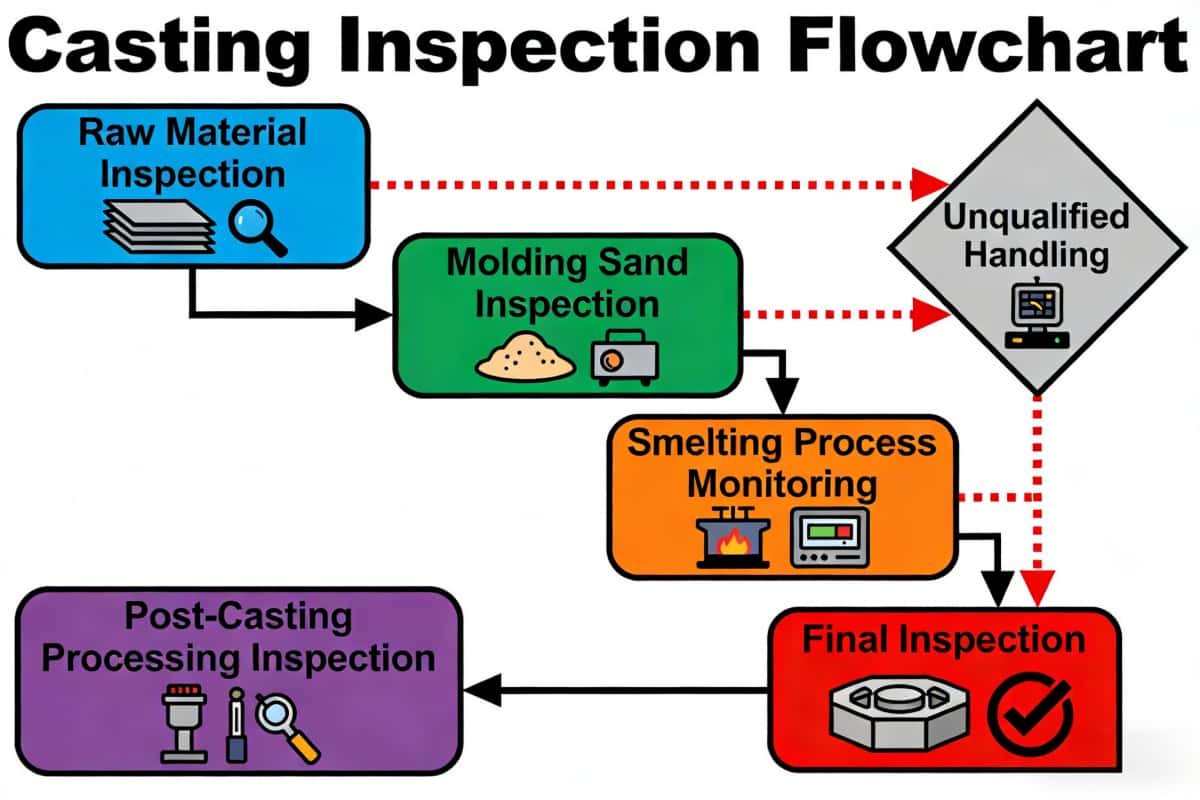

The quality of cast iron parts comes from every production link. Strict inspection of each link is the fundamental guarantee to avoid defects. A reliable foundry must establish a standardized full-process inspection system covering:

• ✅ Raw material inspection (pig iron, scrap steel, return scrap)
• ✅ Molding material inspection (resin sand, precoated sand, green sand)
• ✅ Smelting process monitoring
• ✅ Post-casting processing inspection (shot blasting, grinding)
• ✅ Final finished product inspection (mechanical properties, internal defects)

Raw Material Inspection (Pig Iron, Scrap Steel, Return Scrap)

• Chemical composition analysis – testing the content of key elements such as carbon, silicon, manganese, phosphorus, and sulfur to meet the requirements of gray iron (HT200/HT250/HT300) and ductile iron (QT450/QT500/QT600) grades
• Impurity screening – removing scrap with excessive harmful impurities (e.g., lead, tin) and non-metallic inclusions to avoid affecting the mechanical properties of castings

Molding Sand Inspection

• Core indicators – moisture content, clay content, air permeability, and strength of resin sand, precoated sand, and green sand
• Process monitoring – regular sampling and testing during production to avoid quality issues caused by degraded sand performance
• Comparative testing – comparing with standard samples to ensure stable performance

Smelting and Temperature Control Inspection

• Real-time temperature monitoring – maintaining the smelting temperature at 1350–1450℃ to ensure complete melting of raw materials and uniform composition
• Molten iron composition inspection – testing the composition of molten iron after smelting and making timely adjustments if deviations occur

Post-Casting Processing Inspection (Shot Blasting, Grinding)

• Shot blasting effect – checking surface cleanliness and roughness to ensure no sand adhesion, oxide scale, or burrs remain
• Grinding precision – verifying that casting dimensions meet drawing requirements and avoiding excessive grinding that impairs structural strength
• Surface inspection – combining visual inspection and instrumental testing

Final Inspection (Mechanical Performance Testing, Internal Defect Inspection)

• Mechanical performance testing – conducting tensile strength, yield strength, elongation, and hardness tests to meet the performance requirements of gray iron or ductile iron
• Internal defect inspection – using non-destructive testing methods such as ultrasonic and radiographic testing to detect internal defects (e.g., pores, cracks, shrinkage cavities) and ensure defect levels meet standards
• Dimensional inspection – performing full-size inspection of castings with precision tools such as coordinate measuring machines

Criterion 2: Verify Technical Strength and Process Compatibility

A foundry’s technical level and process type directly determine its ability to produce castings that meet your needs. Key inspection focuses include the following three aspects:

Core Casting Processes

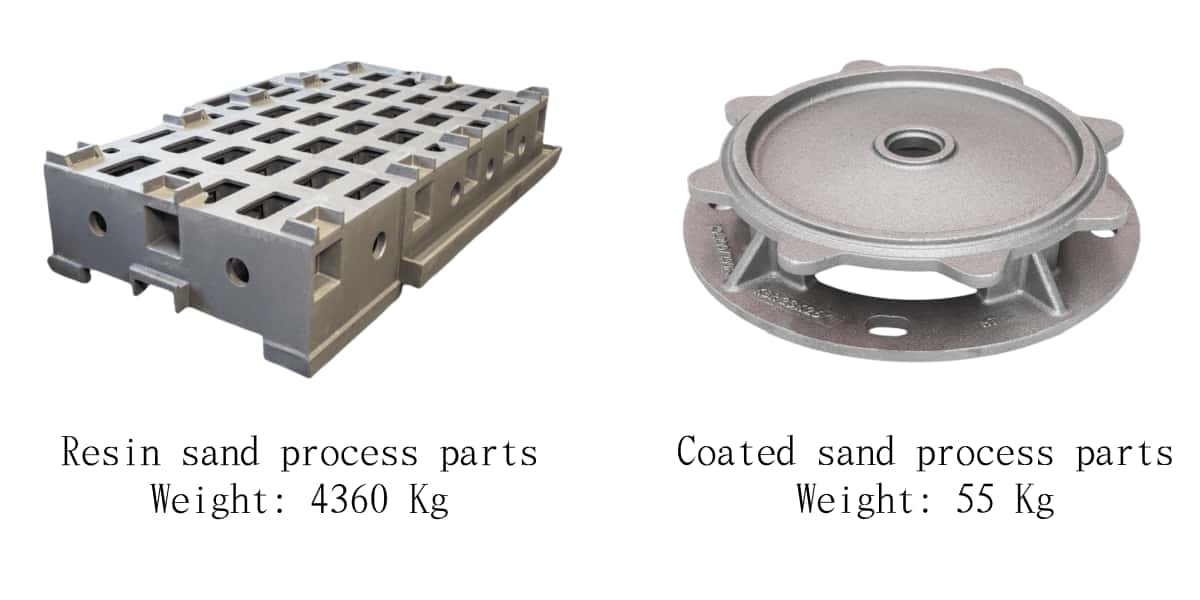

• Resin sand casting – Suitable for producing large and medium-sized castings with complex structures, featuring excellent surface quality, structural strength and dimensional accuracy
• Coated sand casting – excellent in dimensional accuracy and surface finish, suitable for small and medium-sized precision castings such as auto parts and valve bodies
• Green sand casting – mature process with low cost, suitable for mass production of medium and low-precision castings
• Automatic molding line – improves production efficiency and casting consistency, suitable for large-batch production

Criterion 3: Confirm Customization Capability and Product Range

• One-stop service capability – whether it provides full-process services from drawing analysis, mold design, sample production to batch production
• Industry experience – whether it has experience in customizing castings of similar structures or for the same industry; whether it can provide professional optimization suggestions for casting structures
• Small-batch acceptance – whether it accepts small-batch customization (e.g., MOQ of 12 pieces) to meet small-batch trial production needs

Meanwhile, confirm that the foundry’s product range covers your required casting types (e.g., machine tool castings, engineering machinery parts, pump bodies) to ensure matching production experience.

Criterion 4: Evaluate Production Capacity and Delivery Guarantee Capability

• Production scale – understanding the factory area, number of production lines, and monthly capacity to confirm it can undertake your order volume
• Supply chain stability – investigating the stability of raw material (pig iron, scrap steel) supply to avoid production suspension or cost increases due to shortages
• Delivery capability – clarifying delivery cycles and emergency response capabilities (e.g., handling urgent orders); checking whether it has a complete logistics cooperation system to ensure on-time delivery

Criterion 5: Assess After-Sales Service and Customer Reputation

• Technical support – whether it provides services such as casting installation guidance and maintenance
• Defect handling – whether it has a complete defective product return and exchange mechanism
• Report provision – whether it can provide third-party inspection reports as required to ensure product quality traceability

In addition, understanding customer reputation is an effective way to verify the foundry’s strength. You can check the foundry’s customer cases (especially those in the same industry), read customer reviews, or conduct on-site inspections to intuitively understand the production environment and management level.
