Machine Tool Casting Components: A Comprehensive Guide to Equipment Types and Casting Processes

Introduction

In the machine tool manufacturing industry, castings are widely recognized as the "skeleton" of the machine. At KBR Casting, we specialize in high-precision components that typically account for 70% to 90% of the total equipment weight.

The quality, structural integrity, and vibration-damping properties of these machine tool castings are the foundational factors that determine a machine’s ultimate precision, dynamic stability, and long-term service life. This guide provides a detailed breakdown of equipment requirements and optimal casting process selection.

1Machine Tool Categories and Their Casting Requirements

Different industrial machines impose unique demands on their cast components based on their specific operational loads, speeds, and precision targets:

• Machining Centers & Gantry Machines

These require massive beds, columns, and crossbeams. The primary focus is on maximum static and dynamic stiffness to support heavy-duty cutting without deformation under high torque. Precision is maintained through massive structural damping.

• CNC Lathes & Mill-Turn Centers

Focus on thermal stability and wear resistance. Slant beds and spindle heads must withstand the heat generated by high-speed spindle rotation while maintaining axis alignment over long production cycles.

• Precision CNC Grinding Machines

Require extreme vibration-damping. The high internal friction/damping capacity of the iron is critical to eliminate micro-vibrations that could ruin sub-micron surface finishes during abrasive grinding.

• Punching, Press & EDM Machines

Punching machines demand high tensile strength and impact toughness for frames. EDM and Wire-cut machines require lightweight yet rigid worktables with superior thermal expansion control.

Raw Gray Iron Castings for Machining Center Bases provided by KBR

2Casting Process for Large Base Components: Resin Sand Casting

For fundamental, large-scale components such as Machine Beds, Bases, Columns, and Worktables, the Resin Sand Casting process is the industry standard. It provides the best balance between structural integrity and cost-effective tooling.

Why choose Resin Sand Casting?

Lower Tooling Investment: This process utilizes wood or foam patterns (Lost Foam), which significantly reduces initial mold costs compared to metal tooling. It is the perfect choice for single-unit custom builds or small-to-medium batch production.
High Dimensional Accuracy: Once the resin-hardened sand mold sets, it offers high strength and rigidity. This leads to minimal "mold wall movement" during the molten metal pouring process, ensuring the final casting matches the theoretical design dimensions closely.
Superior Surface Quality: Resin sand produces a much smoother "as-cast" surface than traditional green sand, drastically reducing the labor-intensive cleaning, grinding, and shot-blasting time.
Exceptional Design Flexibility: Changes to the machine's internal ribbing or external shape can be easily accommodated by modifying the wood patterns, supporting rapid product iterations.

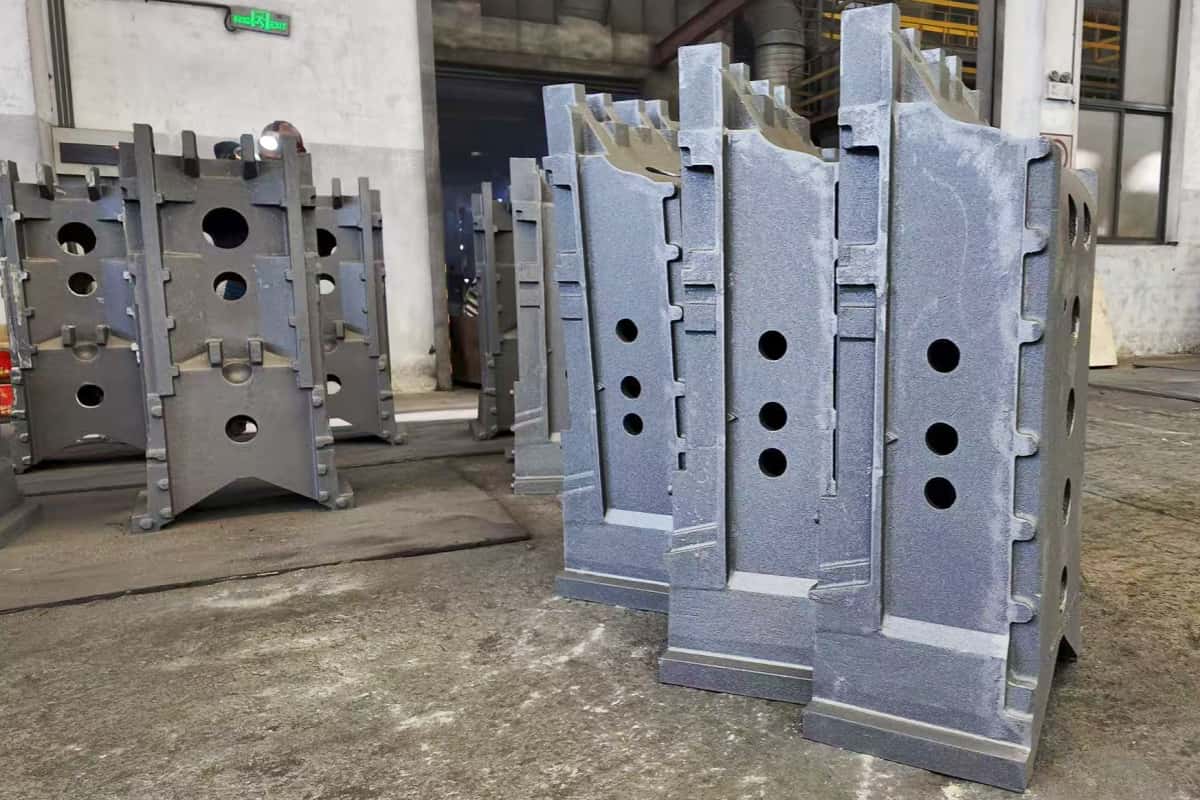

Resin sand casting mold for machine column

Machine tool column castings manufactured via resin sand process

💡 Technical Tip: Resin Sand Casting is ideal for components where tooling costs must be kept low. However, for high-volume precision parts, Coated Sand Casting provides even tighter tolerances and lower machining overhead.

3Casting Process for Structural Components: Coated Sand & Iron Molds

For structurally complex parts like Spindle Boxes, Motor Seats, Bearing Housings, and Gearboxes, we utilize the Coated Sand (Shell Molding) process with iron molds. This method focuses on "Near-Net Shape" manufacturing.

Key Technical Advantages:

Significant Reduction in Machining Allowances: While sand casting may require 5–10mm of extra material, this process can reduce that to just 1.5–3mm. This saves thousands of hours in machining time and significantly lowers tool wear costs.
Enhanced Material Density & Hardness: The use of iron/metal molds facilitates a faster cooling rate. This results in a refined grain structure of the metal, improving the uniform hardness and mechanical strength of the component.
Intricate Internal Cavities: Coated sand has excellent "collapsibility," making it ideal for creating complex internal oil channels, hydraulic circuits, and thin-walled heat-dissipating fins.
Efficiency for Mass Production: Perfect for standardized components that are used across multiple machine models, ensuring high part-to-part consistency.

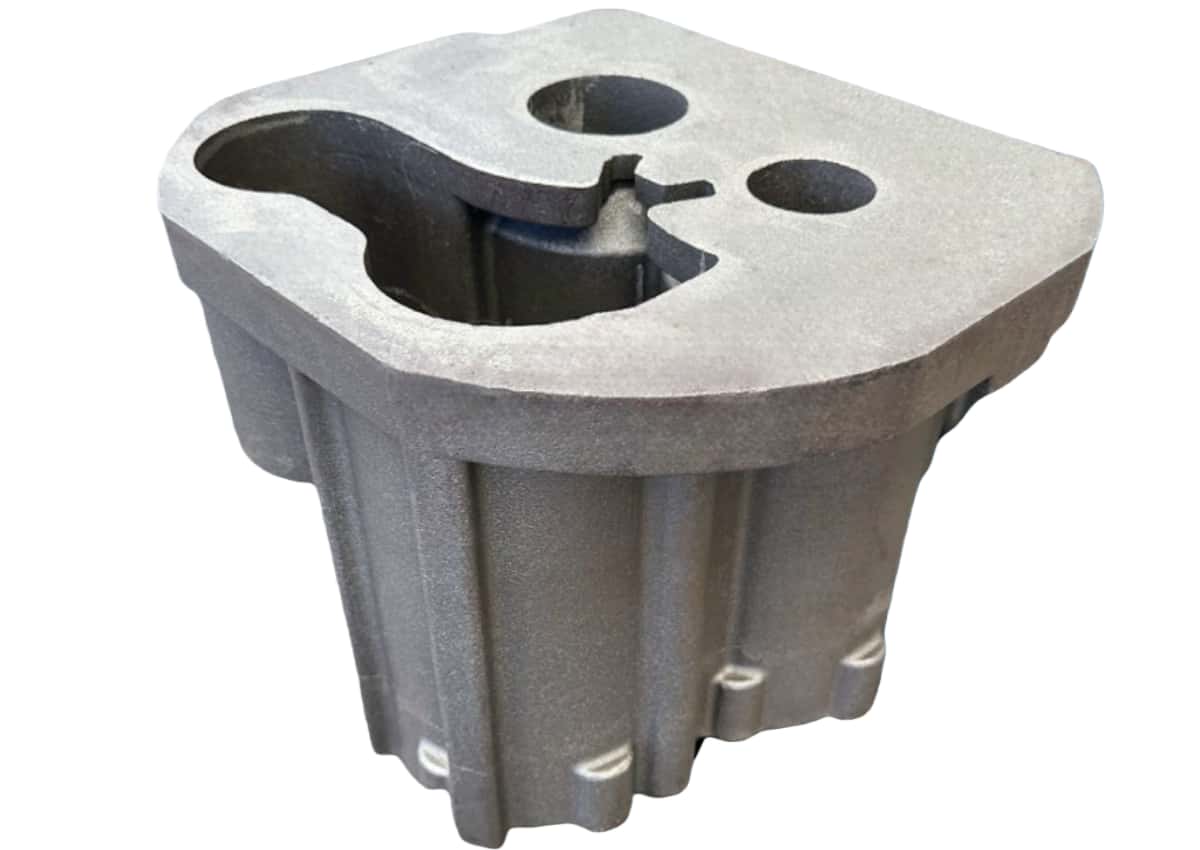

Coated sand process-manufactured bearing housing blanks

4. Material Science: Gray Iron vs Ductile Iron

Gray Cast Iron (HT250 / HT300)

The standard for machine beds. Graphite flakes within the iron act as natural dampers, absorbing micro-vibrations. HT300 offers superior tensile strength and stability compared to lower grades.

Ductile Cast Iron (QT400-QT600)

Used for high-stress components. Spheroidal graphite gives the material high tensile strength and impact resistance, making it suitable for punching machine frames and heavy-duty gears.

5. Stress Relief (Aging) Treatments

To ensure sub-micron precision over decades, all machine tool castings must undergo rigorous aging treatments to eliminate internal residual stresses:

Artificial Aging (Thermal): Castings are heated in a furnace to 500-600°C and cooled slowly to ensure the casting doesn't warp during or after machining.
Natural Aging: For high-end equipment, castings may be stored outdoors for 6–12 months to allow micro-structural stabilization through natural temperature cycles.
Vibration Stress Relief (VSR): An efficient, fast method using controlled high-frequency vibration to redistribute internal stresses.

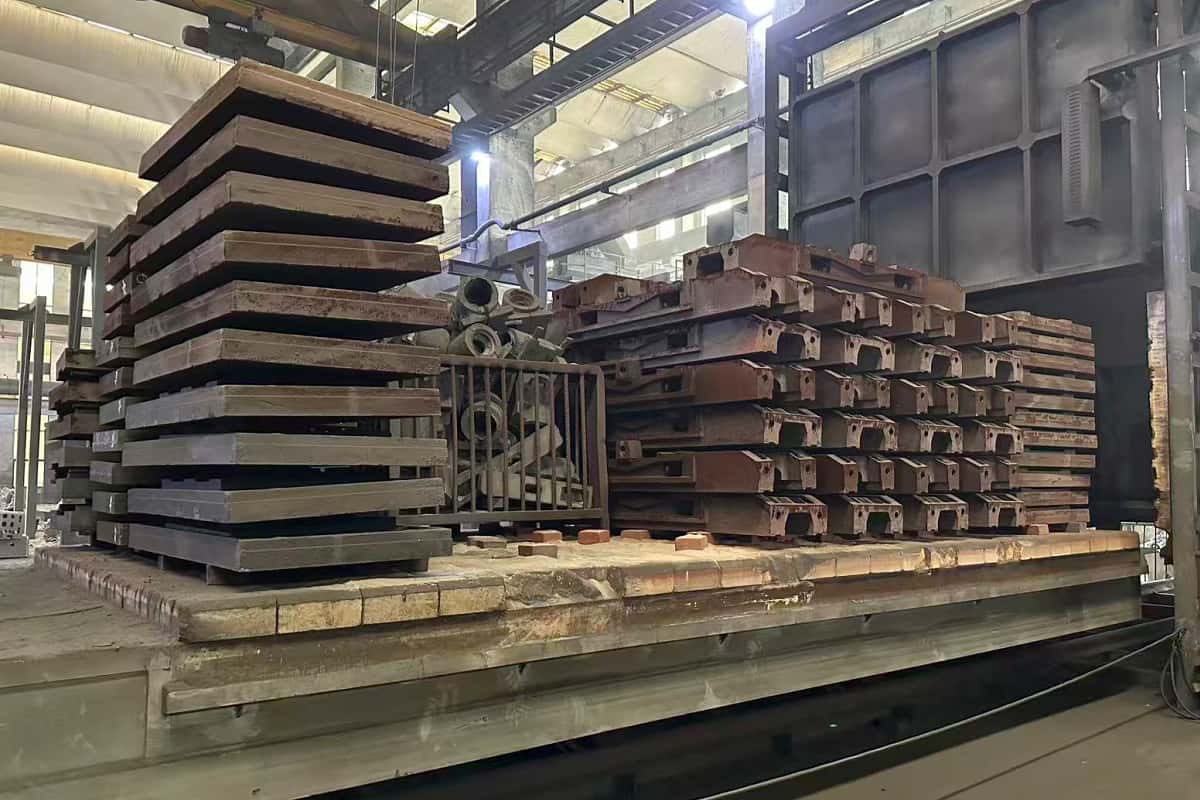

KBR’s thermal aging for machine tool bed & worktable castings

Choosing the Right Machine Tool Casting Supplier

A reliable foundry like KBR Casting must meet several critical industrial benchmarks:

1. Single-Pour Capacity

For large gantry beds, the supplier must have sufficient furnace and crane capacity to perform a single-pour operation. Multiple pours introduce cold shuts and structural weakness.

2. In-house Post-Processing

A supplier with rough machining and aging furnaces is essential. Rough machining reveals internal defects (like porosity) before shipping, preventing costly surprises during your final machining.

3. Material Analysis

Look for on-site spectrometers and hardness testers. Every batch should come with a documented chemical composition and mechanical property report (HT300 certification).
